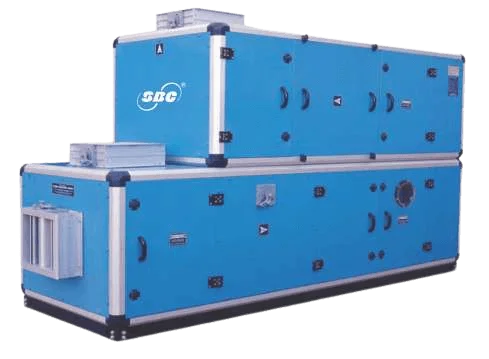

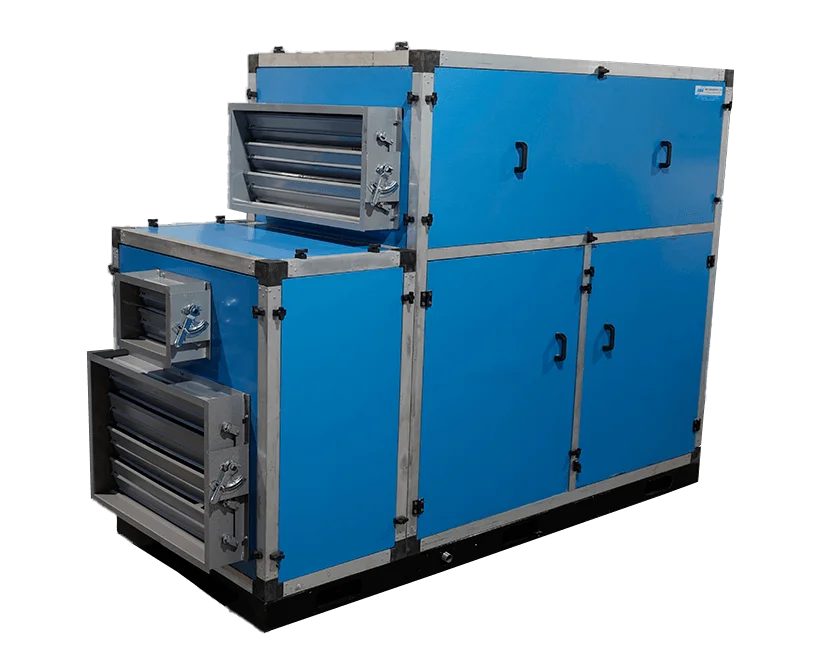

Air Handling Unit

Air Handling Unit

Commercial Equipments

Air Handling Unit is the need of the hour. Since, it does the most important function of circulating fresh air, by taking in outside air and conditioning it.The exhaust air which can also be termed as “stale air”is discharged.Thus,it ensures healthy and top notch health as well.The air quality of the indoor is regularly maintained as the air handling unit regularly keeps a check on the safety and health of the inhabitants.

In the areas where the need for quality of air is significantly lower, then the unit re-circulates the air though mixing chamber which automatically results in saving of energy over a period of time as well.There are dampers with mixing chamber as they do the basic function of keeping a check on the ratio between the air which is returned,exhausted as well as that of outside air.

Features :

• Applications : Cooling, Heating, Humidification and Ventilation.
• Frame Work : Mainframe of self-supporting hollow extruded aluminium profile. Thermal break construction as option.
• Frame Panels : Double Skin CFC / HFC free PUF injected 25 / 43 /50 / 75 mm thick panels. Various skin option available in plain GSS, pre-painted GSS, pre-plasticized GSS, aluminium, stainless steel as per duty requirements.
• Fan Section : : Fan Section contains belts driven DIDW Forward / Backward / Aero foil Backward curved Centrifugal Blower & direct driven Plug Fans as per requirement.
• Fan/Motor Assembly : Fan and Motor assembly mounted on common base frame of Extruded Aluminium Profile on vibration isolators.
• Coil Section : Coil Section designed for CHW / HW / DX high efficiency heat transfer coils.
• Drain Pan : Dual Slopping Aluminium / Stainless steel drain pan mounted on PUF insulated bottom panel.
• Drain Pan : Dual Slopping Aluminium / Stainless steel drain pan mounted on PUF insulated bottom panel.
• Filter Section : Flat Filter Section designed for Synthetic pleated pre-filters. Choice of filtration available as per required duty conditions levels.
• Scrubber Section : Choice of wet & dry scrubber.
• Outdoor Installation : Overhead canopy available for outdoor installation.
• Optional Sections :Mixing chamber - For Fresh Air & Return Air mixing.
• Manual / Motorized controls-optional.
• Micro 'V' / Hepa / Bag / EU-4 / EU-7 / EU-9 / EU-13 / Special.
• Filtration Section.
• Heat Recovery Wheel Section.
• Spray / Pan Humidification Section.
• Other special sections as per individual customer requirement.
