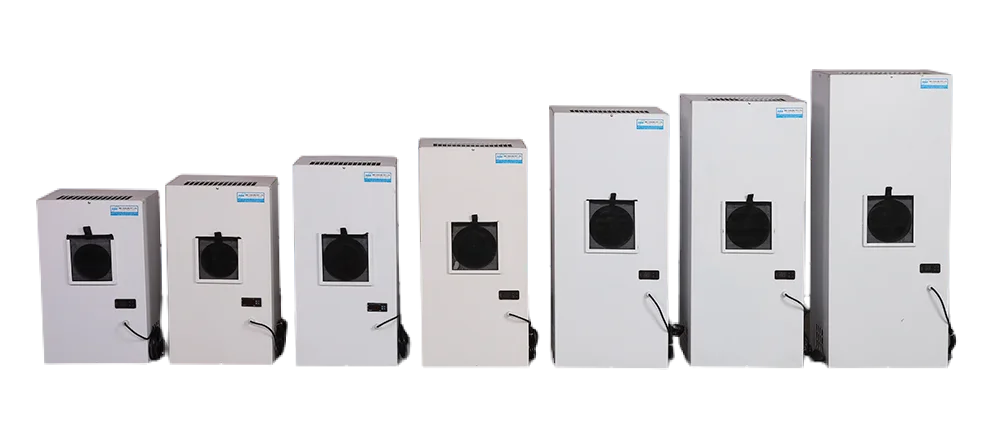

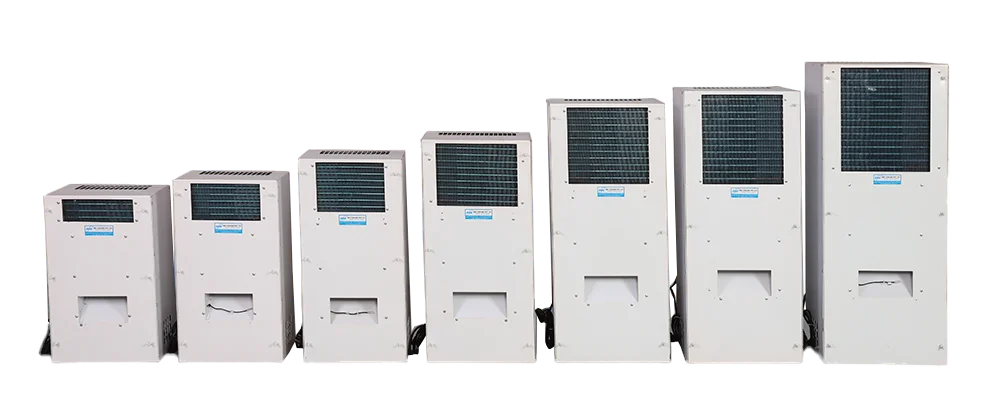

Panel Air Condition
Commercial EquipmentsGeneral Characteristics :
- Air Flow : Two independent air circuits, the internal circuit circulates cool Air in the panel and the external air circuit dissipates extracted heat to the atmosphere (special ductable models available to expel condenser hot air to other locations).
Cooling Circuit :
- Includes sealed compressor, metering device and associated refrigeration equipment.
Temperature Control :
- Microprocessor Controller with programming through multi-function keys and alphanumeric display with easy access man / machine interface. Digital display of actual and set temperature values. Stores parameter / programmed values in non-volatile memory adjustable time delay between starts warranting the minimum time for temperature equilibrium and compressor start-ups. Thermostat (electronic or electro-mechanical) in models where space constraints do not permit the use of microprocessor controller.
Drain Pipe :
- To remove moisture / condensate in the panel.
Features :
- Potential free alarm for high and low temperature.
- High / Low pressure switch.
- Fan failure alarm module.
- Door limit switch interface.
- Aluminium body (telecom applications)
- Stainless Steel body (coastal areas, food processing and pharmaceutical applications).
- Low humidity module.
- Water-cooled condenser for high ambient environment.
- Custom built size for replacement of imported units and Special applications.
- GI Powder Coated Body
- High Sensible Cooling
- High Static Backward Curved Fan
- Fully Programmable Microcontroller
- Over/Under load Protection
Capacity :
- Panel Air Conditioners are available in various capacities viz., 100 to 15,000 W.
Application For :
- CNC Machine
- Textile Machine
- Telecom ODC
- Small Server
- Electronic Panel
- Telecom ODC
